Technical Specifications

Download pdf

Dumor Digicard SRA3 MKII and A4

Fully adjustable cutting length from min 45mm to 127mm.
Middle roller creasing module, makes your cards instantly ready for folding (A4 only).
Middle roller perfing module, makes your cards instantly ready to become tickets with a tear off flap (A4 only).
Optional access to the web based card layout site where you can upload your text and oursoftware will prepare the print layout for you automatically in seconds.
Card size adjusted by button for standard sizes: 85x45, 85x50, 85x54, 85x95, 85x127 (photo size), as well as infinitely adjustable repeat cut length from 40 to 150mm in 0.2mm increments (user programmed on keypad).
Slitting width of 89mm available (optional cassette)
Perfing: optional cassette
Scoring: (1 mm) optional cassette
Paper weights A4 model from 180 to 300 gsm
Paper weights SRA3 model form 180 to 300 gsm
Tray capacity 8mm
Infeed size SRA3 model: SRA3 or A3 or A4 short edge first
Infeed size A4 model: A4
Process speed: Ca. 4,5 sheet/min. of A4 or ca. 3.5 sheet/min. of SRA3.
Expandable card collection tray to 127mm.
Weight: A4 ca. 14kg, SRA3 ca. 20 kg
Dimensions A4 800 x 500 x 600mm
Dimensions SRA3 800 x 500 x 700 mm
Optional perfing cassette to make tickets
Optional creasing cassette to make foldable cards

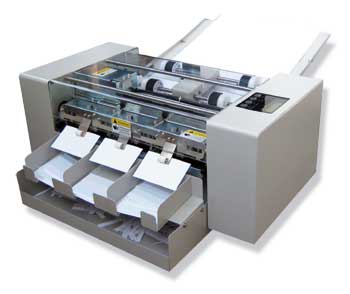

Dumor NC800 Digicard SRA3 MKII

The Dumor Digicard card cutter is a cost effective solution for all kinds of cards, incuding business cards, compliment cards and photos. It has a compact size and is equipped with a mark reader, Full bleed cutting is possible - and the cut is extremely accurate with a long knife life.

Contact Sales at Printers Superstore for More Information

Features

Computer controlled, change format at the touch of a button, no tools needed ever

Five standard card sizes pre programmed

Adjustable first cut length and for follow on cuts to take into account image drift, unique on this class of machine

Standard fitment mark reader for automatic self adjustment onthe- fly for compensation of variable image drift (a feature only found on machines costing 15 times more)

Adjustable gutter cut length and card length by up to +-2 mm for custom length cards. Adjustable first and follow on cuts by up to +-2 mm. Width and side slitting width, done via the keyboard

Handles card stock from 180 gsm to 300 gsm no adjustment needed

Feeds most kinds of stock, special feed rollers and separator ensure no double feeds or marking even with matt coated papers*

Feed tray holds ca. 8 mm of paper

Self compensating for paper density and thickness

Processes up to 4,5 sheets per minute

Adjustable card reception tray for shorter and longer cards

Cutting precision better than 0.1 mm

Long lasting slitter wheels and cross cutter blade

Replacement of blades is quick and easy

Light weight, easily transported to point of use

Small space requirement. Fits virtually anywhere, very quiet operation, cutting area fully guarded with interlock

Infinite adjustable repeat cut from 45 to 127 mm (user programmed)

Optional perfing or scoring tools (separate cassette)

Perfing and scoring diagram

****specifications subject to change without notice, errors and omissions excepted****
