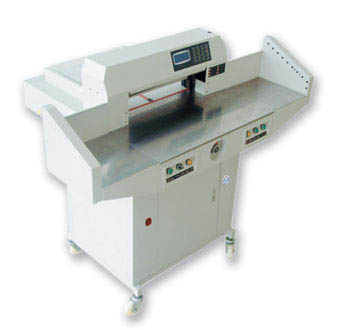

• Hydrocut 52




    Features

    Fully programmable with 9x8 programs and punch-out and hard memory

    Adjustable paper press via valve

    Foot pedal for preclamping

    Cut length 52 cm

    Fully guarded

    Deep front table of stainless steel to CE norms

    True full hydraulic action, not a half and half machine like others

    Fast forward and return knob with 2 speeds

    Cast machined and annealed top frame, press, backguage, blade carrier

    High quality blade, hss optional, changing tool, paper knocking-up tool

    Servomotor driven backguage, high positioning accuracy (better than 0.1 mm)

    Adjustment of blade travel from outside of the machine

    Keyboard with large comprehensive backlit display out of the lightbar area for more efficient use

    Swing cut for better cutting accuracy and less blade wear

    Double guided backguage for more accuracy



  •

    52cm Hydraulic Cutter





    The Hydraulic Cutter is a compact, easy to use, fully guarded and fully CE certificated cutter, and a breakthrough in value.

    The advantages of a hydraulic cutter are faster pressing and cutting (3 times faster full cycle), higher pressing and cutting force, less wear, and quieter operation.

    Our hydraulic cutters offer full down and up hydraulic action on both the press and the blade. Many rival machines are actually only semi hydraulic (press only).

    A new cutter for the price of second hand! With full guarantee.



    Contact Sales at Printers Superstore for More Information



    Technical Specifications



    Cut length 52 cm
    Cut height 6.5 cm
    Cut system hydraulic swing cut
    Min. cut 30 mm
    Pressing force adjustable by valve from 1500N to 20000N
    Cutting force 20000N
    Typical cutting cycle speed 12 per min
    Fast forward full pushout 6 sec. approx
    Typical backguage position accuracy better than 0.1mm
    Stainless steel front and side tables
    Oil change interval ca. 2000 hrs
    Motor 2kW single phase 220 / 240 V
    Fully programmable 9 x 8 program steps
    Left and right sidelays
    Standard fitment wide tables
    Full IR guarding to CE norms with self checking lightbars
    Weight ca. 230 kg
    Size 850cm (w) x 1140cm (d) x 1300cm (h)
    Note: Width is with side tables removed for transport
    Width with side table installed 1580 mm
